The Cradlepoint S400, built for the field.
Zero trust LTE for SCADA, remote monitoring, cameras, and light industrial IoT. OptConnect adds the data plans, activation, staging, kitting, and award-winning support to get every unit online, from one trusted partner.
Get your S400 quote
Free, no-obligation consultation. Single units to fleet rollouts.
Cat 6 LTE · Dual SIM
Class I Div 2 · ATEX
Zero Trust Included
−4 to 140 °F
Industry leaders trust OptConnect
12,000+
OptConnect Customers
1.4M+
Lines Under Management
Since 2009
Managing Cellular IoT
ISO Trifecta
Security · Privacy · AI Governance Certifications
Top-Tier Partner
Hardware + Connectivity + Services + Support
What OptConnect adds
Same router. Very different outcome.
Plenty of resellers can ship you an S400. But a field device is only as good as its data plan, its activation, and the help you get when a site goes quiet. That’s where deployments succeed or stall.
| Compare | OptConnect | Typical online reseller |
|---|---|---|
| Inside the Package | ✓ The S400 plus the services to deploy it: data plans, activation, staging, kitting, and support. | ✕ A sealed box and a license. |
| Data Plan & SIMs | ✓ AT&T, Verizon, and T-Mobile plans under one contract, from pay-per-use to pooled, sized for low-data IoT. | ✕ Not included. You negotiate with carriers yourself. |
| Field Rollouts | ✓ Units staged, configured, labeled, and kitted with antennas, power, and mounting before they ship to each site. | ✕ Ships a box to one address. |
| Activation | ✓ We process SIM activations directly with the carrier, so devices come online ready to work. | ✕ Your job. |
| Support | ✓ Award-winning support for activation, connectivity, hardware, and Ericsson NetCloud Manager. | ✕ The OEM ticket queue. |
| Visibility | ✓ Real-time usage, alerts, billing, and tickets in OptConnect Lattigo, alongside NetCloud Manager. | ✕ NetCloud Manager only. |
| Billing | ✓ One bill for hardware, connectivity, and support. | ✕ Separate bills for hardware, data, and support from different vendors. |
| Security & Compliance | ✓ Private, static IP per device over IPsec, plus ISO certifications in security, privacy, and AI governance (ISO 27001, 27701, 42001). | ✕ Up to you. |
| Expertise | ✓ IoT solution architects who will tell you honestly if an S700, R920, or another Ericsson model fits your site better. | ✕ A product listing. |
OptConnect keeps your devices connected at the lowest total cost of connectivity.
Want it pre-configured, monitored, and warrantied? Ask us about OptConnect fully managed options.
Why the S400
Zero trust LTE for light industrial IoT.
Ericsson built the S400 as a small, semi-ruggedized LTE router for IoT devices in light industrial settings: SCADA, remote monitoring, intelligent traffic control, surveillance cameras, digital signs, and control sensors. It is compact enough for a cabinet or DIN rail and rated for hazardous locations.
01
Zero Trust Included
S400 packages include NetCloud zero trust security. Connected devices are hidden from public internet scans and only reach authorized resources, on a least-privilege basis.
02
Rated for Hazardous Locations
Class I Div 2 and ATEX certified, MIL-STD-810H tested for shock and vibration, and rated from −20 to 60 °C (−4 to 140 °F) in a 221 g DIN-rail-ready body.
03
Cat 6 LTE + Field I/O
Embedded Cat 6 LTE with dual SIM, GbE, USB, and a field-upgradeable expansion bay for serial RS-232, dual Fast Ethernet, or GPIO modules. Power it from 9–33 VDC or PoE.
Tech specs
Inside the Ericsson Cradlepoint S400
| Spec | Ericsson Cradlepoint S400 |
|---|---|
| Models | S400-C6-NA (with Wi-Fi) · S450-C6-NA (no Wi-Fi) |
| Cellular | Embedded LTE Cat 6 (3GPP Rel. 11); dual SIM 4FF; 2×2 MIMO; 2× SMA cellular connectors |
| Carriers | AT&T, T-Mobile, and Verizon certified (S400-C6-NA); private LTE on CBRS Band 48 |
| Wi-Fi (S400) | Single-radio, dual-band 802.11ac Wi-Fi 5 (1×1, non-concurrent); WPA3; 1× RP-SMA. The S450 has no Wi-Fi. |
| Ethernet | 1× GbE RJ45 (LAN/WAN switchable) |
| Expansion + USB | 1× USB 2.0 Type A; 1× expansion bay for serial RS-232 DB-9 (MC20-SRL), dual Fast Ethernet (MC20-ETH), or 20-pin GPIO (MC20-GPO) modules |
| GNSS | Passive GNSS (GPS, Galileo, GLONASS, BeiDou) for asset tracking, multiplexed with the cellular antenna |
| Performance | 95 Mbps firewall; 20 Mbps IPsec VPN; 5 VPN tunnels; 32,000 sessions; 25 typical IoT clients; up to 64 VLANs |
| Security | NetCloud zero trust security included with S400 NetCloud IoT packages |
| Power | 9–33 VDC or PoE 802.3af (Type 1); reverse polarity and transient protection (ISO 7637-2); 4.1 W typical (S400), 3.3 W typical (S450) |

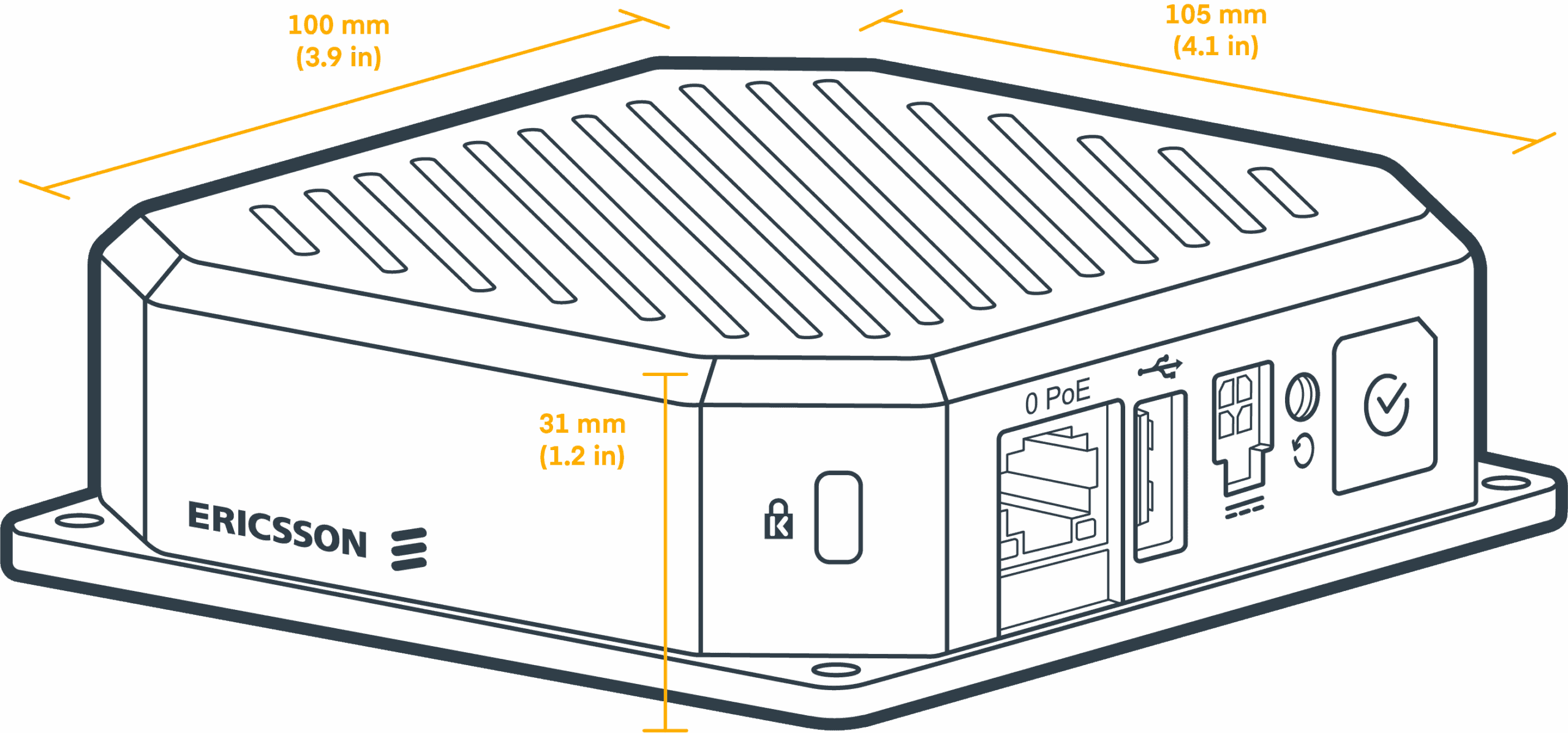

| Size + Weight | 100 × 105 × 31 mm (3.9 × 4.1 × 1.2 in); 221 g (7.8 oz); plastic housing, IP30; optional DIN rail bracket |
| Environment | Operating −20 to 60 °C (−4 to 140 °F); 5–95% humidity, non-condensing |
| Certifications | Class I Div 2; ATEX Zone 2; MIL-STD-810H shock and vibration; UL/cUL; CB |
| MTBF | 1,828,355 hours |
| In the Box | 12 VDC power supply, 2 cellular antennas, and 1 Wi-Fi antenna on designated SKUs. We confirm contents on every quote. |
| Management | Ericsson NetCloud Manager, sold with NetCloud IoT packages (Essentials or Essentials + Advanced); limited lifetime warranty while an Essentials or Essentials + Advanced subscription is active |
Need advice on your setup?
S400 or S450, which expansion module, which antennas, which carrier and data plan, Essentials or Advanced. Tell us about your sites and we’ll spec everything for you.
FAQ
Cradlepoint S400 FAQs
Is the Cradlepoint S400 rated for hazardous locations?
Yes. Ericsson certifies the S400 for UL Class I Div 2 in North America and ATEX Zone 2 in Europe, and tests it to MIL-STD-810H for shock and vibration. It operates from −20 to 60 °C (−4 to 140 °F). The housing is IP30, so plan an enclosure for wet or dusty sites. We can help spec one.
What does zero trust mean on the S400?
S400 NetCloud IoT packages include Ericsson’s zero trust security. Devices behind the router are hidden from public internet scans and can only talk to the resources you authorize, on a least-privilege basis. That protects cameras, PLCs, and sensors that can’t run security software of their own.
What’s the difference between the S400 and S450?
They share the same Cat 6 LTE modem, ports, and ratings. The S400 adds Wi-Fi 5 for local devices; the S450 has no Wi-Fi, for sites where wireless isn’t wanted or allowed, and draws a little less power.
Do I need a NetCloud subscription?
Yes. Ericsson sells the S400 as part of a NetCloud IoT package. Essentials and Essentials plus Advanced packages cover cloud management, zero trust security, support for the full term, and a limited lifetime warranty while the subscription is active. We help you pick the right package and bundle it on one quote.
Which carriers does the S400 work with?
The S400-C6-NA is certified on AT&T, T-Mobile, and Verizon, and supports private LTE on CBRS Band 48. Dual SIM slots let you run a primary and a backup carrier. OptConnect provides the data plans and activates the SIMs for you.
What comes in the box?
Designated S400 SKUs include a 12 VDC power supply, two cellular antennas, and one Wi-Fi antenna. A DIN rail bracket is optional. We confirm box contents and can add antennas, power, mounting, and expansion modules on your quote.
Should I choose the S400 or the S700?
Choose the S400 for hazardous-location ratings, DIN rail mounting, wide DC or PoE power, and field I/O like serial or GPIO. The Cradlepoint S700 is Ericsson’s small Cat 4 LTE router for kiosks, signage, and cameras that need Wi-Fi 6 and two GbE ports. Not sure? Ask us and we’ll recommend one.
Is Cradlepoint part of Ericsson?
Yes. Ericsson acquired Cradlepoint in 2020, and its routers are now sold as Ericsson Cradlepoint. OptConnect is a top-tier partner of Ericsson, so we can quote, configure, connect, and support the S400 in one place.
